Metal Handrail Lighting
Precision is everything
LED Lighting for Metal Handrails
High-performance, built-to-order projectors that are waterproof and vandal-resistant
Built for harsh environments, finished for exquisite interiors.
LED projectors for all types of metal handrails from Aluminium to Stainless Steel. Designed for outdoor metal handrails installed on walkways and steps in the most challenging situations, these products can even withstand salt spray and temporary immersion. However, the choice of finishes makes them equally at home in the most exquisite interiors.
Design and Planning - no problem
Depending on your profession, we can take on the whole design or provide the necessary technical information to complete your metal handrail project, including LDT files.
Metal Handrail LED Projectors
Symmetrical lighting for economy
Performance solutions to reduce project costs
Tri-Linear
High power & greater uniformity
High luminous intensity
Projects light in three directions

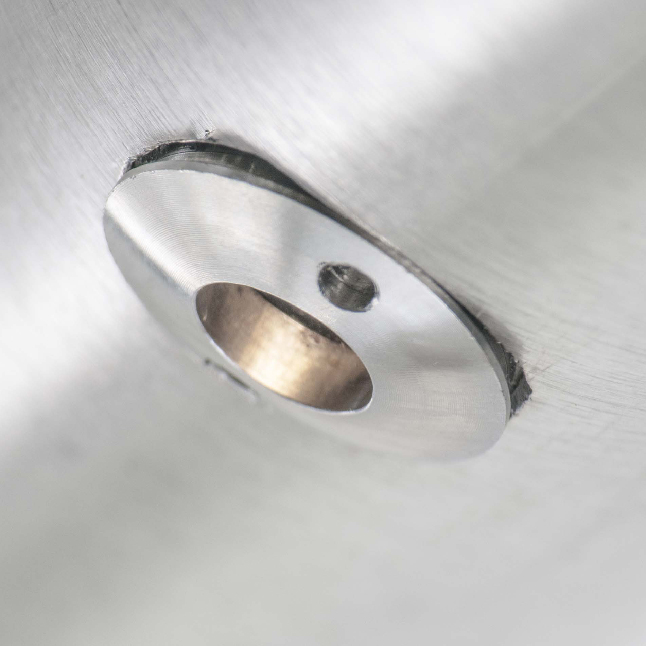

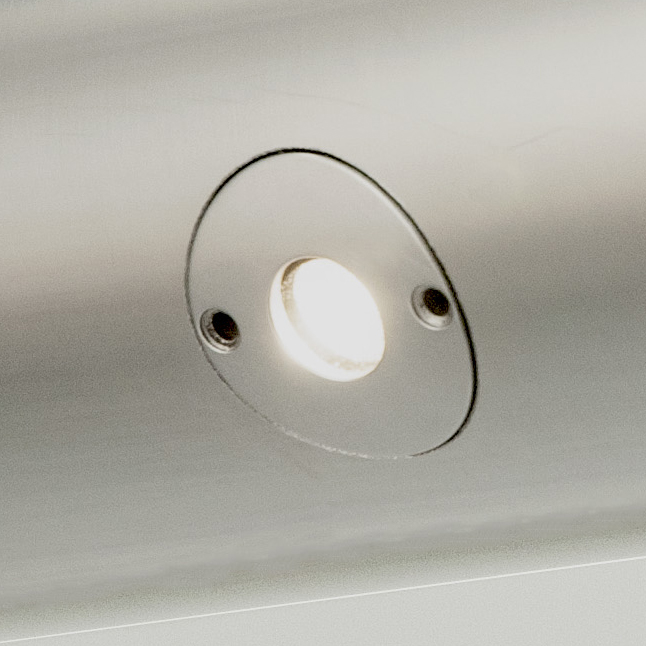

Quicksert
Low-cost & easy to install
The most popular choice
Marine grade 316 Stainless Steel
Asymmetric lighting for pedestrian comfort and Dark Skies
Technical solutions to create the optimum environment outdoors. Almost invisible projection from under the metal handrail
Triple Port Asymmetric
High power with maximum projection
Beam angles from downlight to horizontal
Incredible performance over greater distances
Projector azimuth from 0-60 degrees

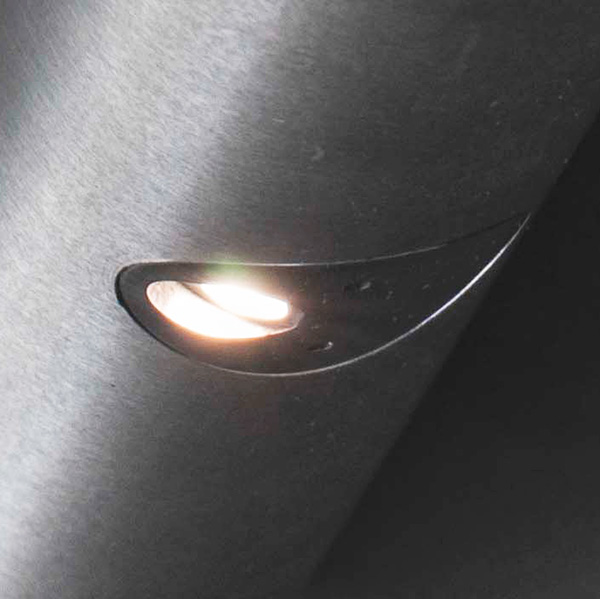

RAILled
The proven stalwart
Marine Grade 316 Stainless Steel
Projector azimuth from 0 -45 degrees
Quicksert Asymmetric
Compact performer
Marine Grade 316 Stainless Steel
Projector azimuth from 0 -35 degrees
How many projectors do I need per metre?
On average, in outdoor metal handrails, projector spacings are 750 -1500mm for single lens fittings and 2400 - 4500mm for multiple lens designs such as Tri-Linear and Tripple Port Asymmetric.
Power 1-2watts per metre
However, standards for levels of illuminance vary wildly from 3 lux to 150 lux across varying widths of walkways and steps. For us to provide an accurate simulation of lighting levels, we require:
- Metal handrail Mounting Height
- Are opposing handrails illuminated, or one side only
- The distance across the Walkway or Stairs or the distance between handrails
- Length of metal handrail/design (Autocad Plans are always well received).
- Details of lighting specifications to be met, such as Lux levels and uniformity.
Once we have this information, you will receive a complete design, including cable loss calculations and a quotation.
Custom Designs and Materials for Metal Handrails
Cannot find a suitable metal handrail light fitting or a suitable material? No problem; our design studio can develop a modification or entirely new design to fit extraordinary tube dimensions or a new challenge.
Long Life & the Circular Economy
The LED assembly gives a very long life (around 100,000 hours). In addition, the retention components are in the same long-lasting 316 Stainless Steel. So, at the end of life, the fitting can be refurbished with the same replacement LED / Lens or built to a different configuration for an uncompromised new installation. The result will be a product as good in 27 years (10 hours use per day every day) as initially installed.
Lighting for indoor and outdoor metal handrails. For Stainless Steel handrails or other metals with our custom manufacturing. Handrail for steps and walkways
