NEW PRODUCT
Triple Port Asymmetric Projector
High luminous intensity from a discreet source. Zero Light Pollution
-
Impressive projection distance with greater power and lighting uniformity
-
Near invisible high-performance light source for Dark Skies
-
Very effective 0-60 degree azimuth to beam centre from under the handrail
-
All projectors can be set at any angle between 0 - 60 degrees
-
A choice of lenses from 16-70 degrees
-
Increased spacing between modules
-
Flush finish, radiused to curvature of the handrail
-
Installation options of either our Instant Fit or Screw retention
-
Anodised aluminium body 20um Silver or 70um Hard Anodised (black)
-
Alternative versions with EPDM isolation gasket
-
Waterproof to IP67. Vandal resistant to IK 10
-
12-36v DC 4watt / 350ma
-
Dimmable
Powerful, Discreet Lighting for Dark Skies
Low-level rear projection available on 51-60 degree models
Uniform beam spread (example 3 x 36 degrees)
Flush finish to the curvature of the handrail

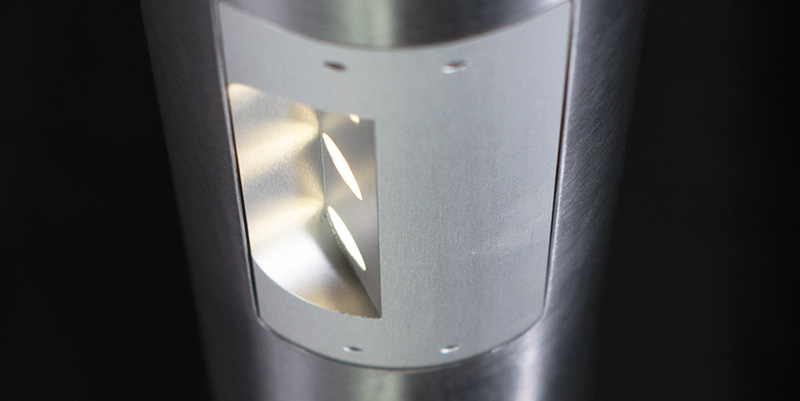

Triple Port Asymmetric Projector with EPDM isolation gasket
Greater forward projection and intensity with zero upward light
Triple Port Asymmetric Projector, high-performance lighting from an almost hidden source. Zero upward light to protect nocturnal wildlife and Dark Skies.
Asymmetric projection is projecting light across a stair or walkway from a handrail at the outer edge or edges. For safe illumination, producing a uniform light over as much of the area as possible is essential—lighting with few dark spots and reduced bright ones. An option is to install symmetrical projectors and rotate the handrail to the optimum position; this is more cost-effective, but depending on the amount of rotation, the bright LED becomes visible, creating glare against the dark background.
Triple Port Asymmetric achieves this from its installed position at the handrail's base; rotation of the lenses is within its body. An almost invisible light source with zero upward light projection creates a well-lit environment with exceptional visual comfort for humans and nocturnal wildlife, creating Dark Skies. These properties can also be found in our Quicksert Asymmetric and RAILled products; however, in this outstanding fitting, the projectors can be made at any angle from 0-60 degrees (beam centre), producing horizontal illumination with the 70-degree lens installed. Triple port Asymmetric features three times the power of our single lens alternatives, designed for higher illumination levels and broader spaces.
With our lens options from 16-70 degrees, higher lighting levels and greater uniformity can be achieved.
Triple Port produces an asymmetrical beam
(90 degrees to the handrail)
Installed under the handrail, light is projected across walkways and stairs. Azimuth from 0-60 degrees (beam centre)
Lateral beam projection up to 160 degrees.
Triple Port Asymmetric offers tailor-made projection from narrow to broad beam.
Triple Asymmetric hidden at the base of the handrail
Azimuth to beam centre 0-60 degrees.
Lens options from 16-70 degrees.
The Triple Port Asymmetric projector is easy to install
3wo options for the mechanical installation:
Instant Fit
Create a 20 x 109mm aperture by conventional milling or laser cutting. Make wiring connections, insert the two keys supplied into the body, insert the assembly into the aperture, and remove the keys. Our unique, tamper-proof retention system keeps Tri-Linear in place until the keys are re-inserted for removal.
Screw Retention
Create the aperture as above, but add two M5 clearance holes at 128mm centres (setting out drawing and DXF file available). Insert the retention tool into one pair of 1.5mm diameter holes and place Tri-Linear into the handrail (the tool prevents losing it in the tube). Align and retain the assembly with the two M5 screws supplied, then remove the retention tool. A range of tamper-proof security screws are available, including versions with Nyloc retention.
Wiring
The most critical element in handrail lighting installation and maintenance. Our custom wiring loom service ensures the correct cable size with the minimum volt loss. Triple Port Asymmetric handrail projectors can be hard-wired or plug-and-play, ideal for downtime-critical maintenance areas.
Designed and made in the UK
The Triple Port Asymmetric handrail projector is another fine example of UK engineering. Made from a solid billet of Aluminium, each projector aperture is machined into the body with high precision to replicate the results created in the project's photometric light simulation. The face is radiused to suit the handrail, alternatively flat for box sections and fascias. Each body is made to be 29.6 mm wide to fit a 20mm aperture, narrow enough for laser cutting into a smaller diameter tube. Precision engineering and our unique design ensure a flush fit in all diameters and wall thicknesses from 42mm.
-
Configuration
Three projectors, forward-facing
Azimuth 0-60 degreesCustom options include single and twin projectors
-
Beam Options
Projectors can feature the same or different lenses.
Options:
16 / 36/ 46 / 60 / 70 degrees -
Environment
Interior and Exterior
Waterproof to IP67 (temporarily submersible)
Vandal resistant to IK10
Ambient operating temperature -40 to +70 degrees Celsius -
Power
Auto-sensing 12-36v DC
4 watt (350ma LED operating current)
Installed flux: 375 lumens -
LED Manufacturer
Osram
-
LED Options
CCT: 2500 - 5000K
CRI: 70 / 80 (default) / 90 -
Wiring
Hard wired or Plug and Play
Custom made wiring loom service -
Anticipated LED Life
100,000 hours (350ma / 375lumens)
-
Body Material and Finish
Aluminium
Finished with a choice of:
Silver Anodise 20μm (or alternative colours to order)
Hard Anodise 70μm Black. High di-electric properties
EPDM isolation gasket -
Fixing
Instant Fit - our unique retention system
Screw - two tamper-proof M5 machine screws -
Dimensions
Instant Fit: 108.6 x 29.8mm (aperture 109 x 30mm)
Screw: Please contact us for more details -
Guarantee
5-year replacement part
