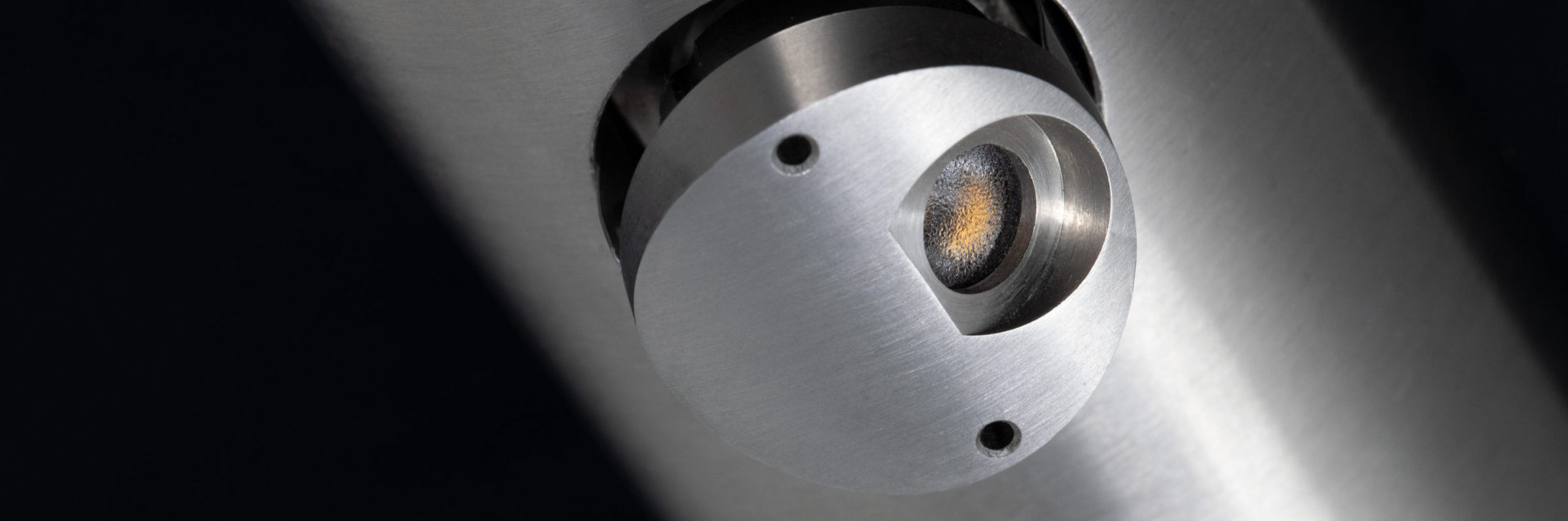

Quicksert Compact Asymmetric Projector
24mm diameter. Asymmetrical beam. 0-35 degree azimuth
Forward projection. Ideal for Dark Skies
Quicksert Asymmetric projector for high-performance illumination without glare.

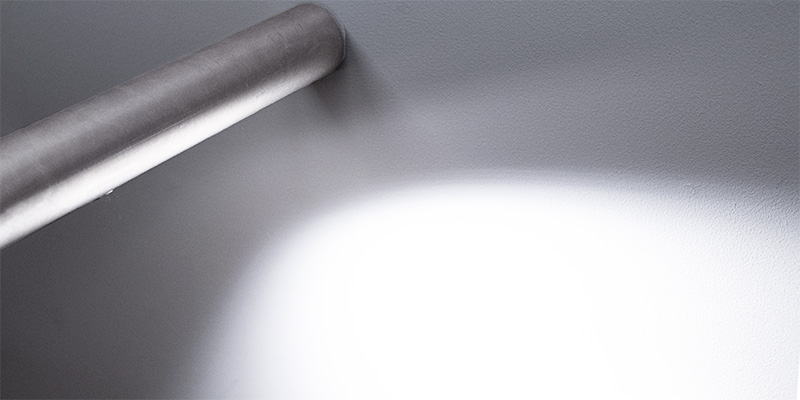

This discreet, compact LED light is installed underneath the handrail, projecting light across walkways and stairs, creating safe, glare-free illumination for pedestrians and helping to reduce light pollution.
The projector can be set at an angle anywhere between 0-35 degrees and, combined with our lens options from 16-94 degrees, incredible versatility and light control can be acheived.
Quicksert Compact Asymmetric is at home in sophisticated interiors or externally on a footbridge washed with salt spray. The Instant Fit retention mechanism ensures a flush, tamper-proof fit every time. Mirror or grained finishes complete any demanding installation.
Weensland Bridge Hawick, Scotland
Pedestrian footbridge over the River Teviot, a wildlife-sensitive area.
Bridge Length 60 metres, Width 4.2 metres
Performance designed to Lighting Standard P1 15lux Av. 3lux min.
68 x Quicksert Asymmetric 35-degree azimuth, 70-degree lens
Total power: 100watts
4 x 75m wiring looms
Installation time: 12 hours
Instant Fit
Our Instant Fit retention system ensures a secure, flush fit every time. The projector is simply inserted into the 24mm diameter aperture.
Tapping a thread is unnecessary; it fits any tube thickness and ensures correct alignment with the handrail every time.
The adjustable retention mechanism ensures the flush finish and transmits any impact onto the opposite (internal) face of the handrail.
Precision Engineered
British precision engineering.
Constructed from a solid billet of Marine Grade 316 Stainless Steel, the projector aperture is machined into the body to accurately replicate the results of software simulation.
Asymmetric
Projection

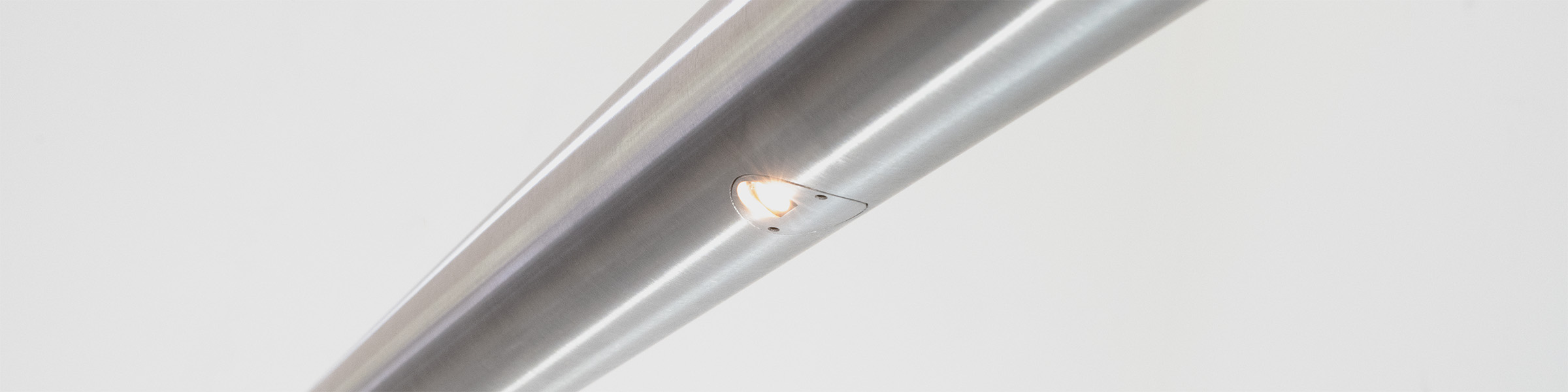

Installed on the underside of the handrail, this discreet light source projects light across the walkway or steps.
The projector can be aimed at any angle between 0-35 degrees.
Lens
Precise light control for optimum performance.
A choice of lenses from 16-94 degrees, creating a contrasting effect or consistent uniform illumination
Seamless Finish
Every Quicksert Asymmetric is hand-built and calibrated to ensure a flush finish to the curvature of the handrail.
Mirror and grained finishes are available to match.
For square and rectangular handrails, a flat-face option is also available.
Tamper Resistant
The Instant Fit retention system requires a key for insertion and extraction.
Installation is effortless, but once inserted, the mechanism provides a high level of tamper resistance.
Keys are supplied with every order.
Vandal resistant to IK10
Saltwater Resistant
The body and retention mechanism are all made of marine grade 316 stainless steel.
Quicksert Asymmetric is waterproof to IP67 - temporarily submersible even in saltwater.
Protecting Wildlife and Dark Skies
Recent research has highlighted the importance of nocturnal wildlife and revealed the detrimental effects of artificial lighting at night on these species.
One example is research from the University of Sussex, which has demonstrated that moths are more effective at night than daytime pollinators like bees.
Quicksert Asymmetric's controlled output eliminates glare and upward light, enhancing the environment for pedestrians and cyclists while protecting wildlife and helping to reduce light pollution.
Dimming
Intensity can be controlled by protocols such as DALI, PWM and 1-10v dimming
Emergency Lighting
Handrail lighting is ideal for way-finding in an emergency situation.
Stand alone 3 hour emergency packs are available along with UPS-compatible LED drivers
Reuse not Recycle
Our long-life products may well outlive your current requirements.
If our projectors can be reused, why not use our cost-effective refurbishment service?
Designed and made in
the UK
Our products are made in the UK, using local suppliers from within an 8-mile radius.
This means reliability, not only in product performance but also delivery of standard and custom designs.
Custom
Every one of our projectors starts off as a billet of solid metal, a blank page. This manufacturing approach allows us to be flexible and responsive; combined with our in-house design, custom requirements can be achieved effectively and on time.
Download information
Please be advised that LDT files contain raw lens data. It is essential to elevate the lens to attain the desired performance. The projector elevation within the Quicksert Asymmetric body can be between 0 and 35 degrees.
Alternatively, RAILled offers 0 -45 degrees.
