Tri-Linear Handrail Projector
Greater Luminous Intensity and uniformity
Three-way projector. Lateral and 90 degrees
Tri-Linear handrail projector offers high intensity and excellent uniformity, resulting in the need for fewer fittings.
This highly effective product is designed to direct light along the handrail's axis and perpendicular to it.
The central projector is fixed at 0 degrees, and the two outer can be made at angles ranging from 0-35 degrees. This flexibility enhances forward intensity, making it particularly suitable for wider walkways and staircases requiring greater uniformity .
Combined with our lens options, which range from 16-94 degrees, this product offers remarkable versatility and superior control over light distribution.
Asymmetric
Projection

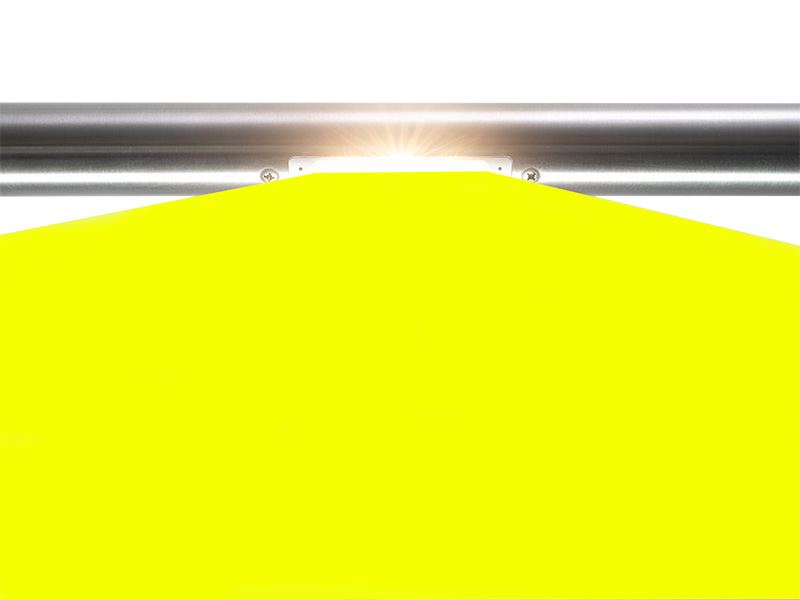

Tri Linear projects light along the handrail in two directions and at ninety degrees.
Asymmetric projection across steps or walkways can be achieved by setting it at a rotated position.
Lens
Precise light control for optimum performance.
A choice of lenses from 16-94 degrees, creating a contrasting effect or consistent uniform illumination
Seamless Finish
Every Tri Linear is hand-built and calibrated to ensure a flush finish to the curvature of the handrail.
The aluminium body has a silver anodised finish, which is standard. Other colours and grained finishes are optional. For marine environments, a Hard anodised is available.
For square and rectangular handrails, a flat-face option is also available.
Tamper Resistant
The Instant Fit retention system requires a key for insertion and extraction.
Installation is effortless, but once inserted, the mechanism provides a high level of tamper resistance.
Keys are supplied with every order.
Vandal resistant to IK10
Water Resistant
The body is made of anodised aluminium.
The lighting is double sealed to IP67 - temporarily submersible even in saltwater.
Protecting Wildlife and Dark Skies
Recent research has highlighted the importance of nocturnal wildlife and revealed the detrimental effects of artificial lighting at night on these species.
One example is research from the University of Sussex, which has demonstrated that moths are more effective at night than daytime pollinators like bees.
Tri-Linear can be used at shallow inclined angles to achieve asymmetric projection and protect Dark Skies.
Alternatively please see our specialist asymmetric projectors:
Quicksert Asymmetric
RAILled
Triple Port Asymmetric
Dimming
Intensity can be controlled by protocols such as DALI, PWM and 1-10v dimming
Emergency Lighting
Handrail lighting is ideal for way-finding in an emergency situation.
Stand alone 3 hour emergency packs are available along with UPS-compatible LED drivers
Reuse not Recycle
Our long-life products may well outlive your current requirements.
Our projectors can be reused with our cost-effective refurbishment service.
Designed and made in
the UK
Our products are made in the UK, using local suppliers from within an 8-mile radius.
This means reliability, not only in product performance but also delivery of standard and custom designs.
Custom
Every one of our projectors starts off as a billet of solid metal, a blank page. This manufacturing approach allows us to be flexible and responsive; combined with our in-house design, custom requirements can be achieved effectively and on time.
Download information
LDT files will be available soon, please contact us for more information.
