RAILPost Asymmetric post lighting for Balustrades and Posts
LED lighting providing asymmetric light distribution across walkways and stairs
*For interior and exterior use
*Discreet and low glare
*High-performance precision lighting
*Downward light projection
*Ideal for sensitive areas
and Dark Skies compliance
RAILPost is a sophisticated projector that throws light away from the post, efficiently illuminating walkways and stairs. The factors of lighting intensity and uniformity can be optimised at the design stage by picking one of a choice of lenses with spreads from 16-70 degrees. However, the principal factor controlling uniformity is the distance that light can be projected away from the handrail. So, in order to provide the optimum performance, we machine the inclined projector position (within the body) at anywhere between 0-40 degrees.
All things considered – Chic lighting for posts. Built for tough environments, finished for exquisite interiors.
Despite its appearance, RAILPost is incredibly tough and water-resistant. Manufactured in Marine Grade 316 Stainless Steel to provide excellent corrosion resistance. Waterproof to IP67, vandal resistant to IK10.
Installation
Machine 30mm diameter hole (s) into the post and insert RAILPost asymmetric projectors using our dedicated tool.
With attention to theft, our retention system holds the body within the handrail, it can only be removed with this tool.
LED Handrail drivers and Emergency
Last but not least is the choice of LED Handrail Driver.
Above all else, safety has to be the main concern and on this basis, the choice is either Constant Current or Constant Voltage.
Please contact us to discuss wiring installation.
Constant Current
Series connection. The easiest circuit to install, connecting one to the next with a single wire return.
The driver provides a constant amperage, but as the number of RAILPost increases so must the voltage, by nominally 3 volts per unit. In order to comply with SELV, we recommend Class 2 drivers at a maximum output of 48volts d.c. As a result, this means a maximum of 15 RAILled’s per driver.
Constant Voltage
Parallel / Series connection. A 24-volt d.c. supply requiring Dc-Dc converters in order to power up to 6 RAILPost’s per converter.
The driver provides a constant voltage of 24 volts d.c resulting in compliance with SELV and the connection of any number of RAILPost’s, limited only be cable loss.
Emergency
We provide 3hour Maintained battery back up for 24volt Constant Voltage operation
In order to operate on UPS Emergency systems, we can provide A.C. drivers that will operate on a d.c. voltage as well
Please contact us for more information.
Specifications:
Lamp: 1w LED 350ma 2.85fV nom.
Production colour temperatures: 3000K and 4000K (2500K – 6500K to order)
CRI: 80 (70 / 90 to order)
Lenses: 16 – 70 degree
Average life: 100,000 hours 350ma / 50,000 hours 500ma
Ingress protection: IP67
Impact resistance: IK10
Anodic index: 0.55 nom.
Dimming and emergency options available
Supplied with 200mm Red /Black PTFE cable. Extended length to order
RAILPost Asymmetric Projector for free standing and Balustrade Posts
Asymmetric Light Distribution
This sophisticated projector features asymmetric light distribution, projecting light efficiently across walkways and stairs.
This optimises efficiency whilst greatly improving uniformity. The factors of lighting intensity and uniformity can be optimised at the design stage by picking one of a choice of lenses with spreads from 16-70 degrees.

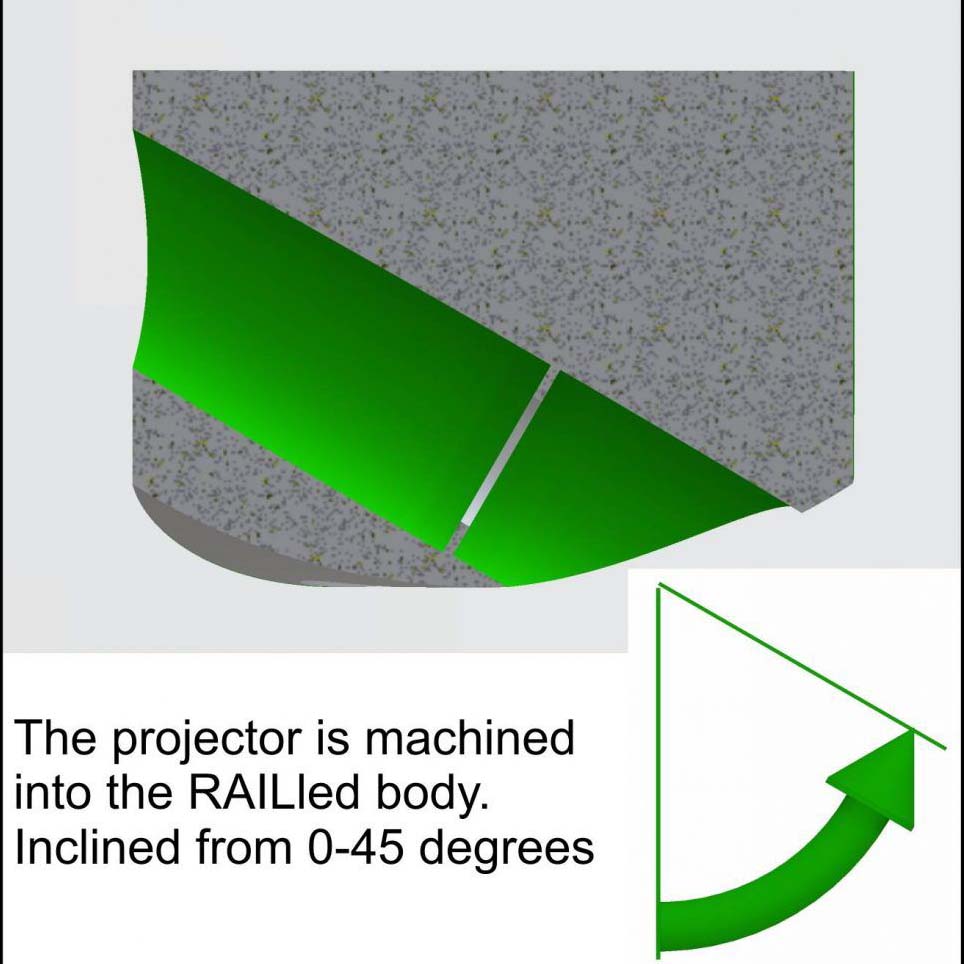

Optimised Azimuth
However, the principal factor controlling uniformity is the distance that light can be projected away from the handrail. So, in order to provide the optimum performance, we machine the inclined projector position (within the body) at anywhere between 0-45 degrees.
Fast & Secure Installation

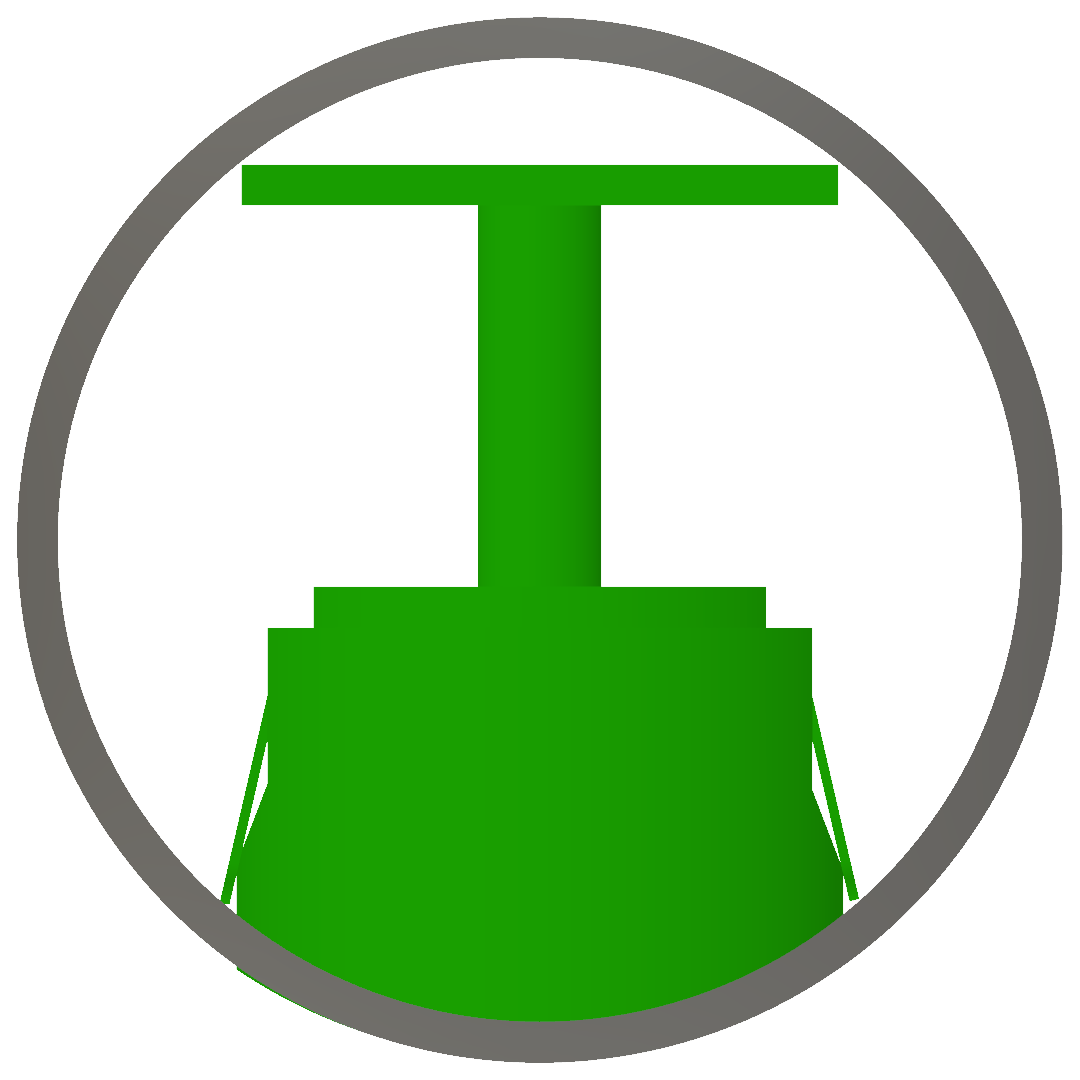

Machine 30mm diameter holes in the tube and insert RAILPost projectors using our dedicated tool. No additional fixings to lose, simply insert our dedicated tool and install.
Insertion / extraction time is less than 10 seconds.
With attention to theft, our retention system holds the body securely within the handrail.
It can only be removed with the dedicated tool.
Specification : Lighting
Colour temperatures / installed lumen flux
CCT: CRI 80 2500K 2700 - 3500K 4000 - 5000K Power
Constant CurrentPower 24v DC Anticipated Life 350ma 115lm 125lm 135lm 1watt 1.35watt 100,000 hours 500ma 155lm 165lm 180lm 1.5watt 2watt 50,000 hours CRI 70 / 90 available to order
Lens Options
16 deg. 36deg. 45deg. 70deg. 90deg.
Specification : Material & Performance
Metal Parts
Body and moving parts 316 Marine Grade Stainless Steel.
Designed for extreme environments providing stronger protection and corrosion resistance.
Galvanic series 0-0.1v.
Alternative versions are available to suit different handrail materials.
Face Finishes
To match Stainless Steel tube finishes.
180 Grit / 240 Grit or custom
High polished finish
Semi- polish machine finish (default)
Ingress Protection
IP67 Waterproof.
Protection against full immersion for up to 30 minutes.
At depths of 15cm to 1 metre.
Impact Resistance
IK 10
High level of protection.
Protected against 20 joules of impact (equivalent to a 5kg hammer dropped from a height of 400mm)
