Handrail Lighting Control Gear
Handrail lighting control gear custom built to the project specification, supplied in an enclosure appropriate for the installation. Use our EcoRail IP65 for general purposes or we provide alternative ingress protection and material types to order
Internal component options include:
- Constant Voltage 12 -48 volt LED Drivers
- Constant Current LED Drivers
- Dimmable drivers of most protocols
- 3 Hour Emergency backup
- Central Management Systems
Enclosure material options:
- ABS
- Polycarbonate
- Stainless Steel
- Fibreglass
EcoRail
Handrail lighting control gear for general purpose installations.
- Ceiling voids
- Riser / Electrical distribution spaces
- Domestic
- External (not suitable for highly exposed areas – please contact us)
EcoRail is supplied with:

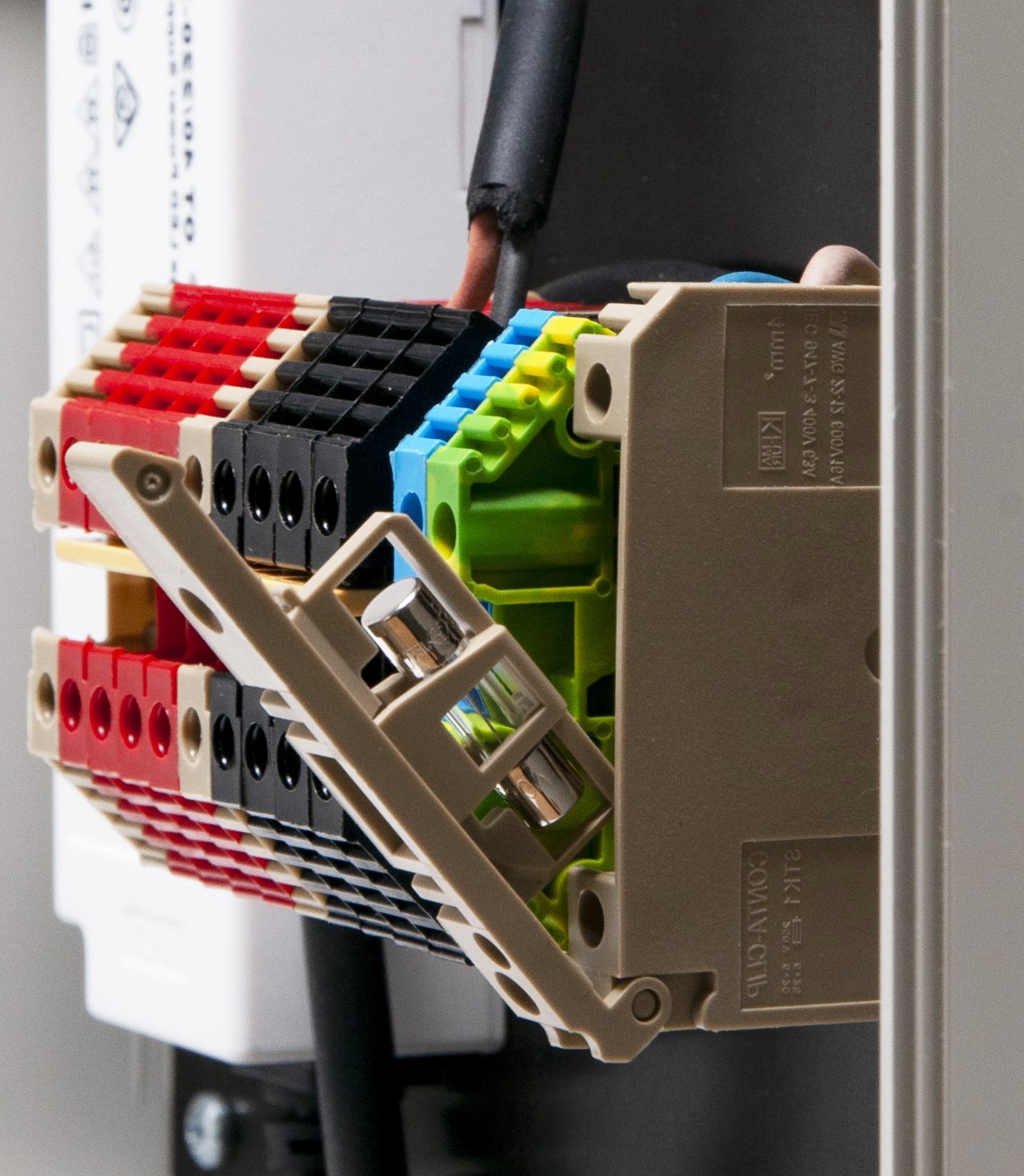

- DIN rail terminations and fused isolator for local and immediate disconnection.

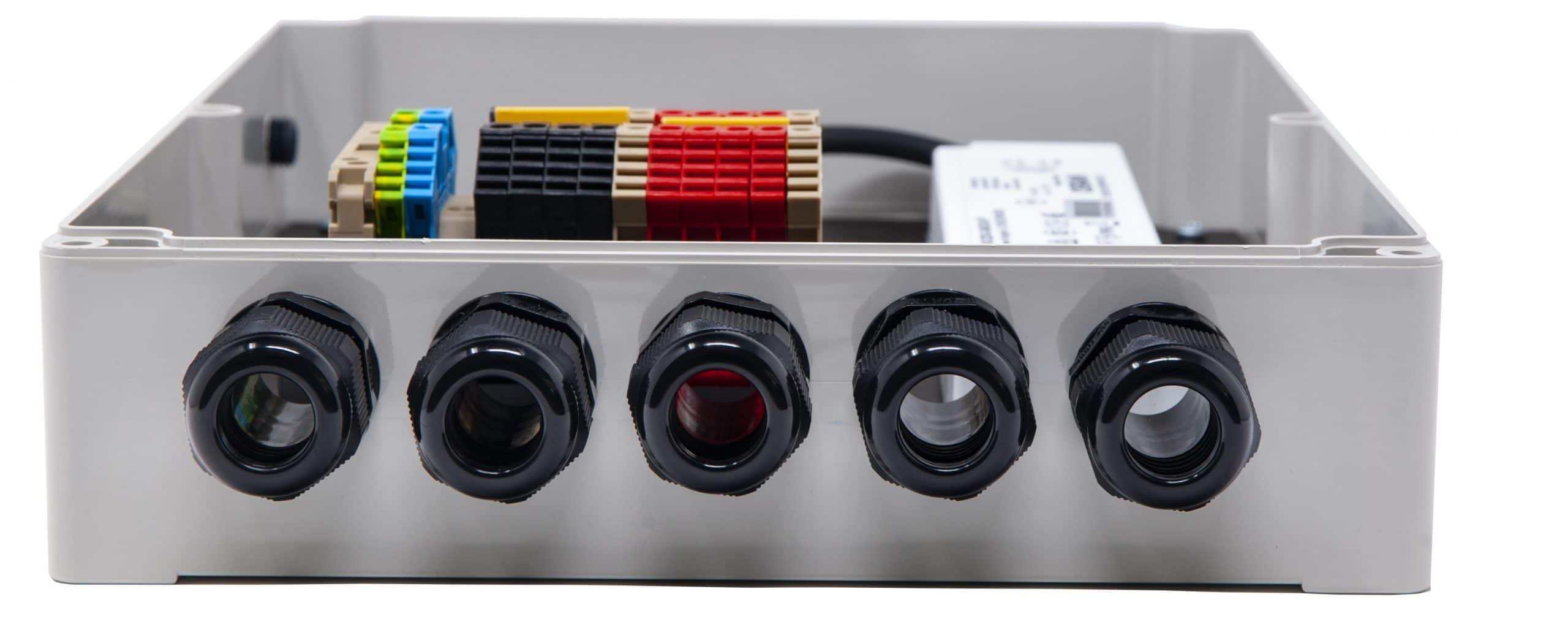

- M20 / IP 68 cable glands. The standard configuration is up to 5 or just tell us how many you require.

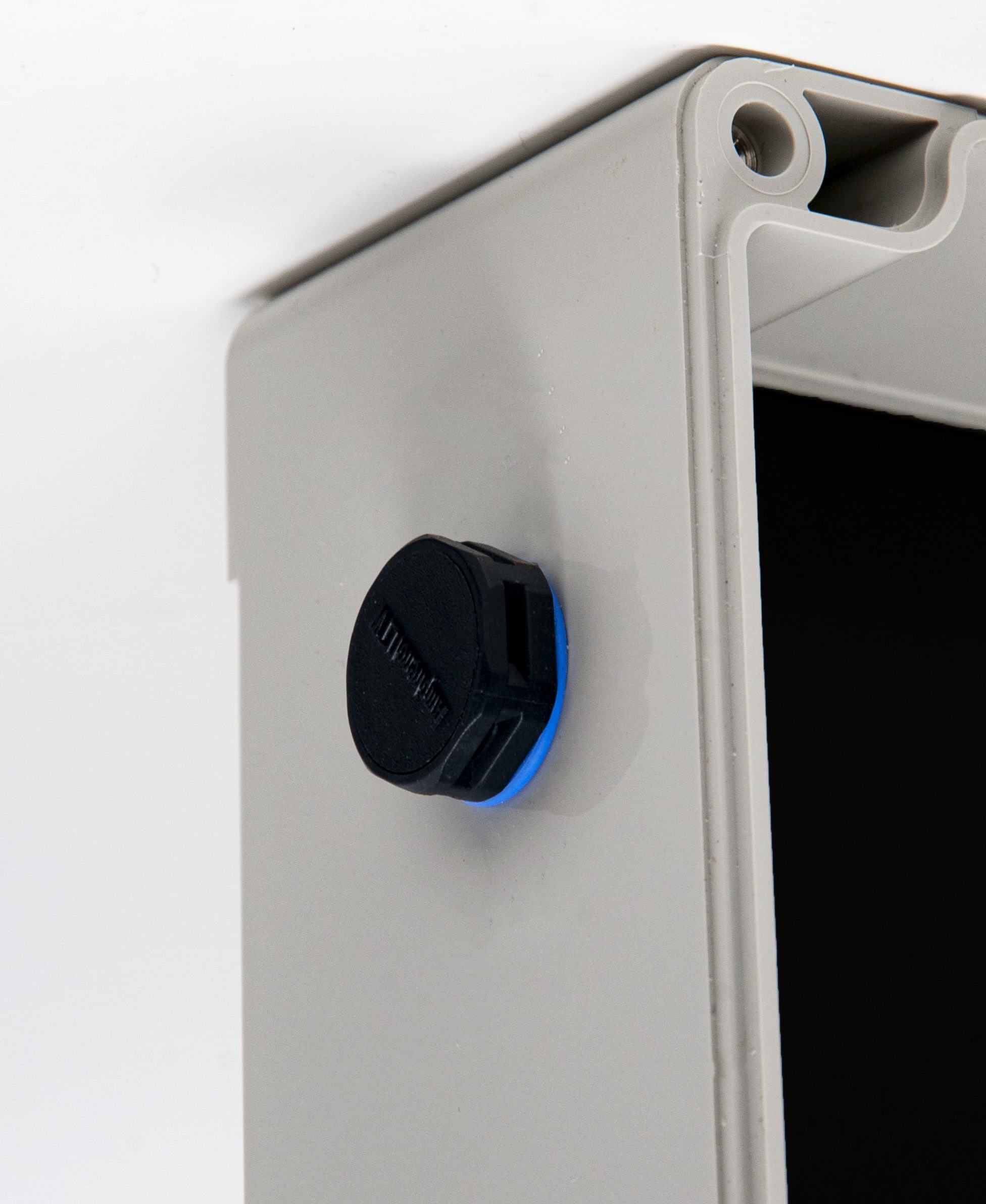

- Breathable side vent moderates temperature fluctuations/pressure in order to maintain IP rating and reduce moisture.
- Removable backplate

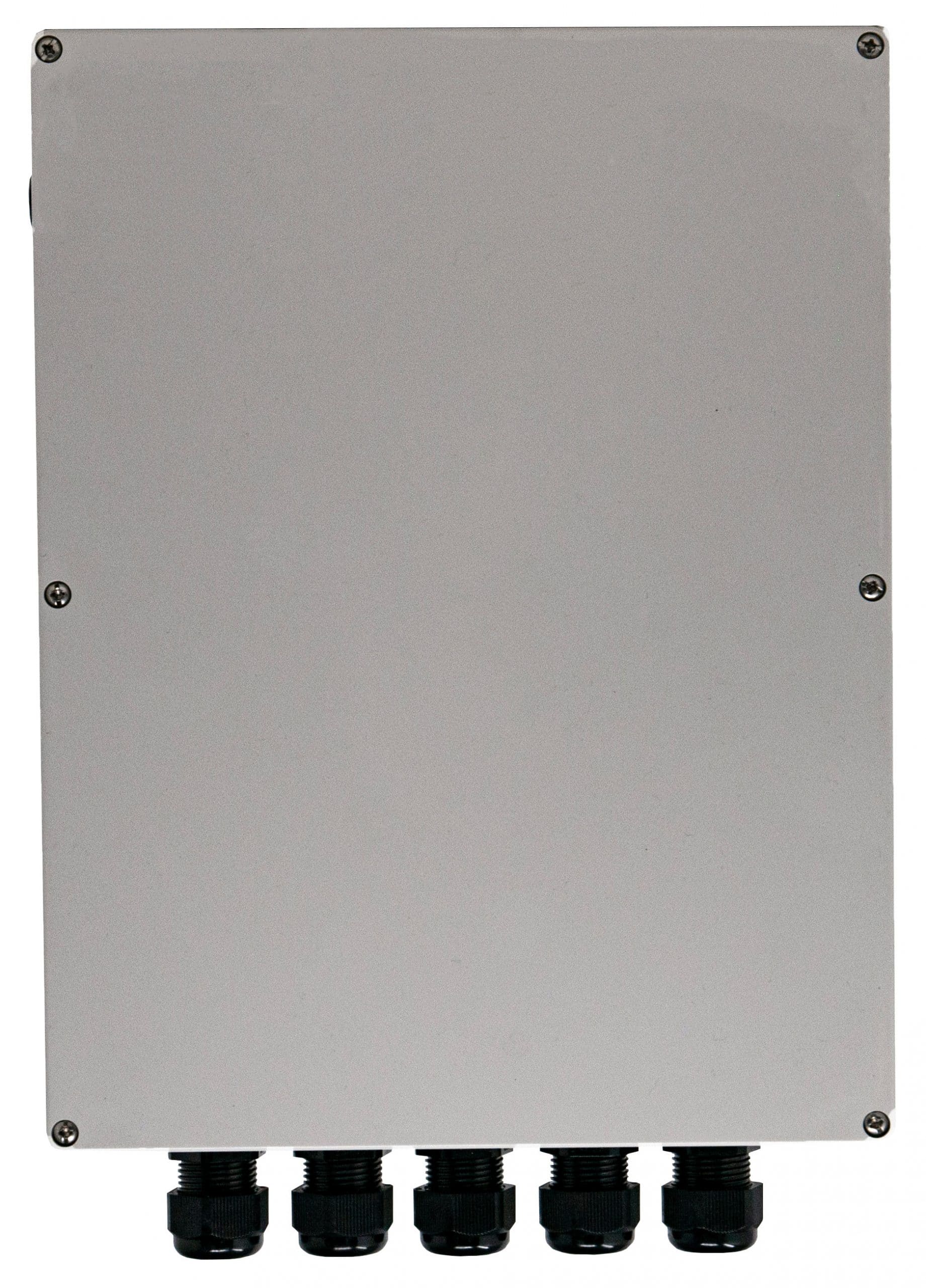

- ABS enclosure IP 65
- Control gear to suit the application.
Suitable for wall or ceiling mounting
Dimensions: 30 x 23 x 8.5 cm ( 33.5 x 23 x 8.5 including M20 cable glands)
Please contact us with your questions and requirements regarding handrail lighting control gear.
- info@transitlighting.co.uk
- Telephone 0208 1500015
