RAILled 2D Asymmetric
The ultimate performer in handrail lighting
For Emergency Lighting and sensitive areas such as wildlife conservation
More than any other Handrail Lighting projector RAILled 2D Asymmetric provides unparalleled versatility. When running a project simulation in Photometric Software consider this product as a conventional spotlight, allowing movement in two planes. Project across the target surface up to 60 degrees and rotate a full 360 degrees.
Aside from being incredibly versatile this amount of sophistication also achieves very precise illumination. This precision is especially useful when wishing to achieve uniformity at low intensity. As for projects such as emergency lighting and wildlife conservation.
Consequently, results from the simulation are machined into a solid metal body. As a result, in conjunction with our unique retention system, every installation features each projector pointing at exactly the right place. The precise amount of light precisely where it is needed.
In addition, for narrow walkways, this results in greater distances between installation points. This not only means greater energy efficiency but also cost reductions in product and installation time.
RAILled 2D is not only sophisticated but tough too. It has all of the features of our other projectors being Waterproof to IP 67 and Vandal resistant to IK 10. Manufactured in Marine Grade 316 Stainless Steel and hence provides excellent corrosion resistance
Installation

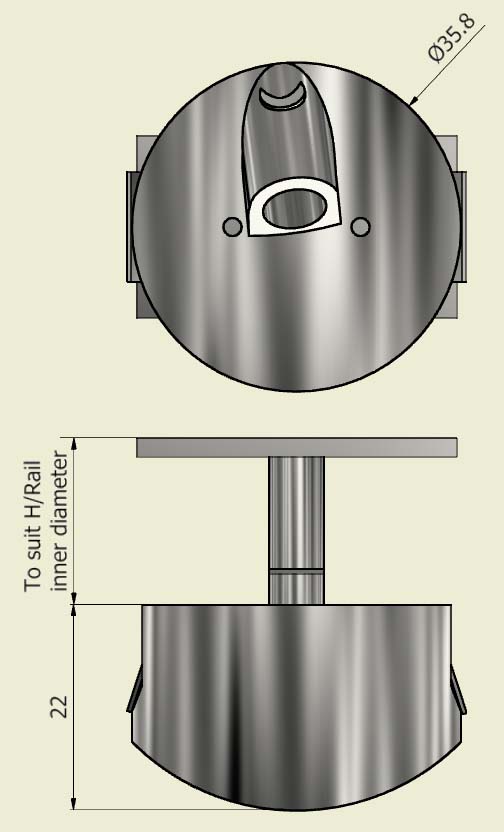

To install, machine a 35mm diameter hole into the tube, make all electrical connections and insert with the dedicated tool. Our unique retention system provides a tamper-proof and solid installation, even with impact from vandals, it cannot be pushed into the tube.
Further reading:
Tunnel Emergency Lighting
Illuminated Handrail Planning
PRO S – the common component
Lighting Under Handrail

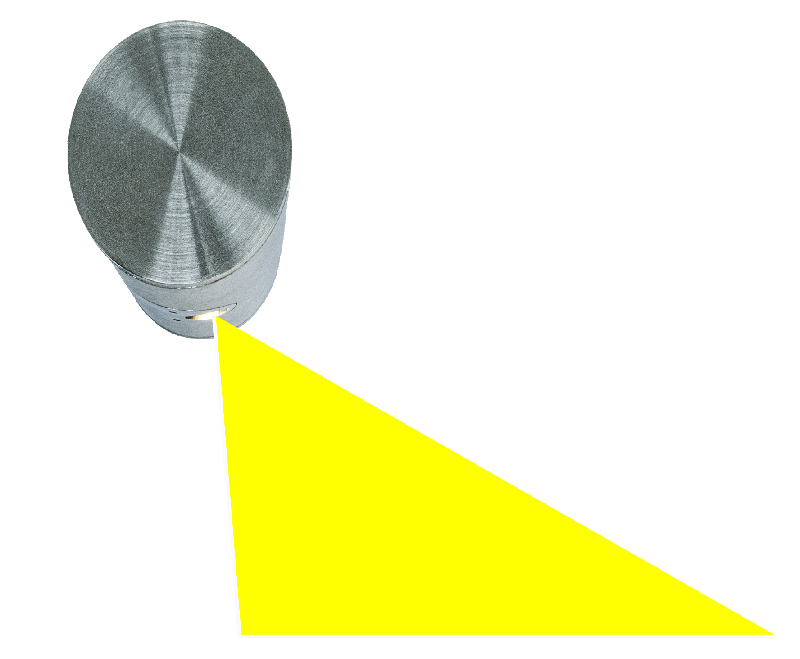

Asymmetric Light Distribution

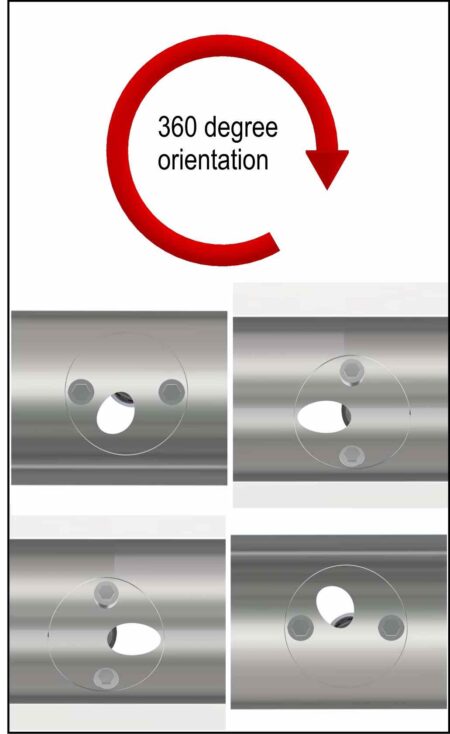

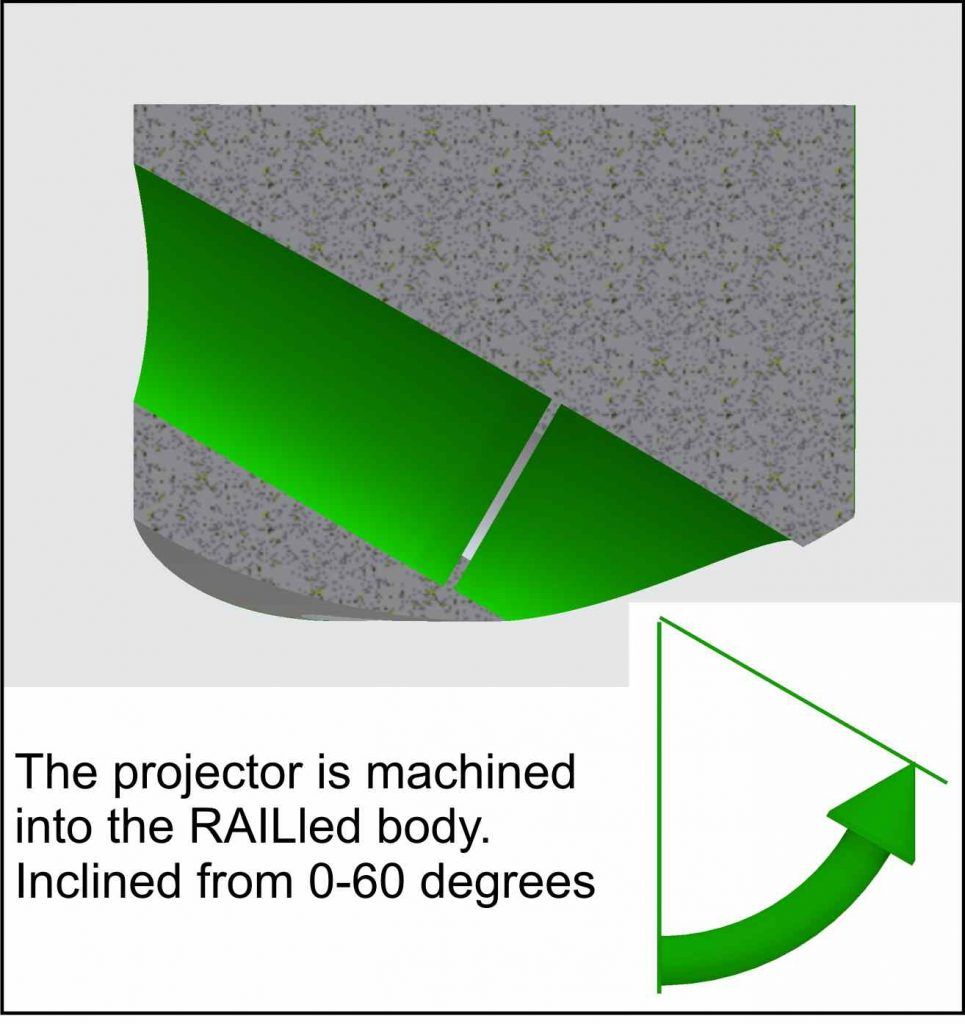

The entire LED projector assembly is not only angled at a position from 0 -60 degrees within the RAILled 2D body it can also be orientated at any position within 360 degrees.
No reflection or refraction techniques just direct illumination, giving the maximum in performance and efficiency.

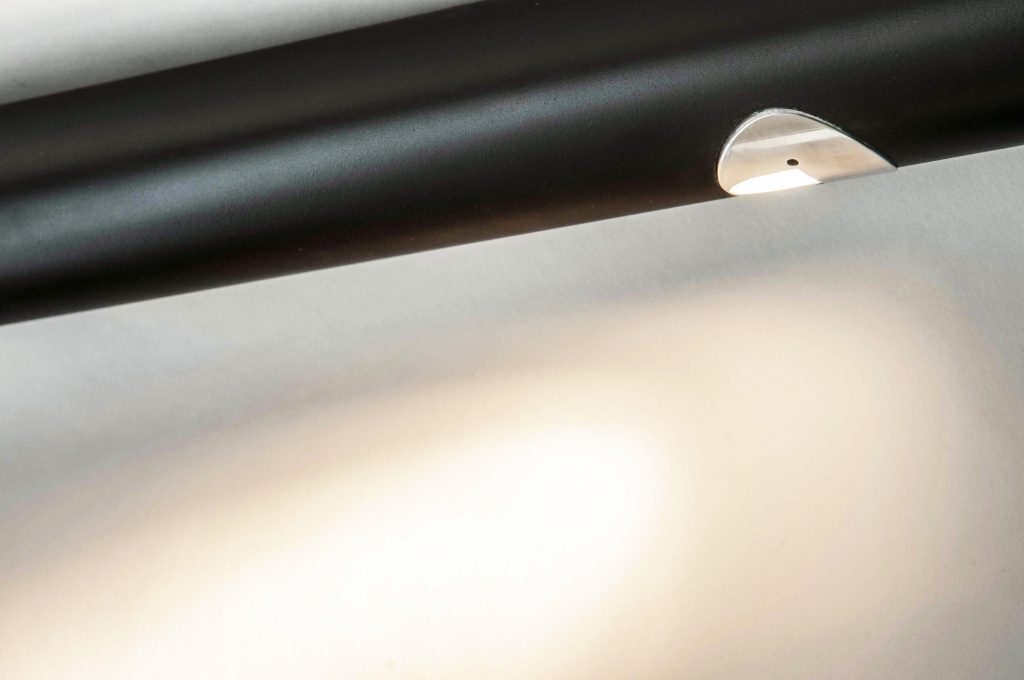

Almost invisible light source projecting light across paths and walkways.Safe passage with glare-free illumination.
Ideal for Emergency Lighting.
Specification : Lighting
Colour temperatures / installed lumen flux
CCT: CRI 80 2500K 2700 - 3500K 4000 - 5000K Power
Constant CurrentPower 24v DC Anticipated Life 350ma 115lm 125lm 135lm 1watt 1.35watt 100,000 hours 500ma 155lm 165lm 180lm 1.5watt 2watt 50,000 hours CRI 70 / 90 available to order
Lens Options
16 deg. 36deg.
Specification : Material & Performance
Metal Parts
Body and moving parts 316 Marine Grade Stainless Steel.
Designed for extreme environments providing stronger protection and corrosion resistance.
Galvanic series 0-0.1v.
Alternative versions are available to suit different handrail materials.
Face Finishes
To match Stainless Steel tube finishes.
180 Grit / 240 Grit or custom
High polished finish
Semi- polish machine finish (default)
Ingress Protection
IP67 Waterproof.
Protection against full immersion for up to 30 minutes.
At depths of 15cm to 1 metre.
Impact Resistance
IK 10
High level of protection.
Protected against 20 joules of impact (equivalent to a 5kg hammer dropped from a height of 400mm)
